Hizon Industries

EchoSmart, Real Time Liquid Level Gauge

How EchoSmart works: liquid level measurement curve showing real-time data transmission to PLC and IoT platform. Solves unutilized inflow capacity with production maximization and pump failure prevention.

Leaving production and revenue on the table due to unutilized inflow capacity

EchoSmart, the solution

Maximization of production rate

Proactive pump failure prevention

​And more

EchoSmart

Deep-range, accurate, real time, automatic liquid level gauge

Ex Certified │ UL Certification (in process) │ RS 485 Modbus Ready

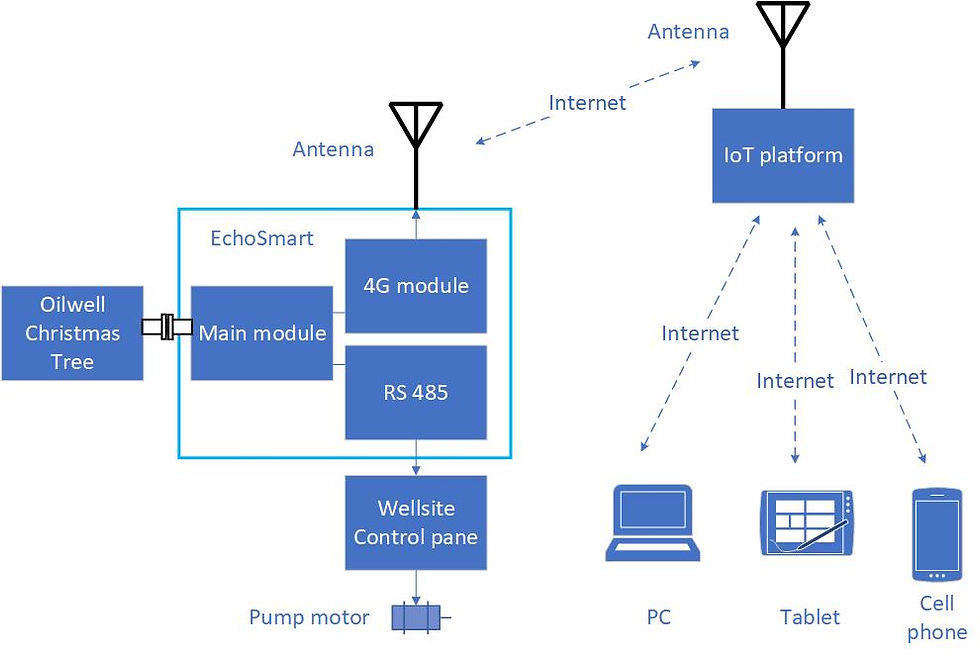

How EchoSmart works

  • Connect EchoSmart to the Christmas tree at the wellsite.

  • EchoSmart can be triggered to fire by either the wellsite PLC through RS-485 interface, or the IoT platform via the 4G connection, or on internally programmed schedule

  • The measured liquid level is transmitted to the PLC in the wellsite control panel via RS-485, where it is used to adjust the VFD to maintain the desired production rate.

  • In parallel, measurement data is transmitted through the 4G module to the IoT platform for processing and further analysis, including reserve loss diagnostics.

How is production rate maximized
